*REQUIRES MILLING (LEVEL-1) & TURNING (LEVEL-1) AT MINIMUM…

 Universal KinematicS

GibbsCAM Universal Kinematic Machine (UKM) technology allows users to program, simulate, and post process for machines with any number of axes and flows.

  • Accurately simulate all the machine components and capabilities of any machine.

  • Generate complete, error-free post processed output that maximize your machine capabilities.

  • Scalable technology that is ready to support future machine solutions.

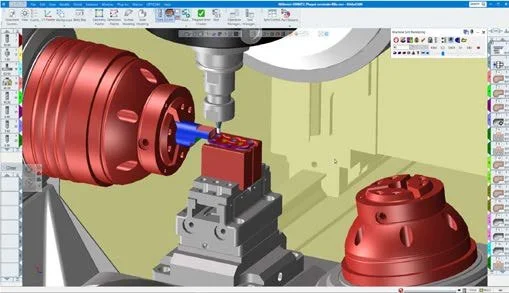

Multiple Turrets & Spindles

Today’s multi-task machine tools incorporate a wide variety of spindle and turret combinations with no end in sight. A two spindle, two turret configuration is common with machines with more than two spindles or turrets becoming increasingly common. With GibbsCAM MTM, users can program machines that have any number of turrets and spindles.

Machine-Specific Setup

Multi-task machine tools represent some of the most diverse machine tool configurations available today. With GibbsCAM MTM, your machine tool’s specific configuration is captured by GibbsCAM’s factory-supplied settings so that you are accurately programming all its capabilities. This way you can be sure that you are taking full advantage of your machine tool for maximum productivity.

Intermediate Tooling

Tooling is more manageable, simulation more accurate and programming easier, with more accurate tool placement and orientation. Fixed and live tooling is defined, located and oriented on the machine tool using GibbsCAM’s graphical interface.

  • Support for toolblocks (adapter blocks, holders for tool holders, right-angle and adjustable heads and flash tooling) with toolblock library.

  • Support for fixtures (chucks, tailstocks, steady rests and other work holding) including fixture library.

  • Simplifies programming through easy and accurate placement and orientation of tools.

Sync Manager

GibbsCAM MTM’s Sync Manager provides an easy to understand, intuitive, graphical interface allowing you to focus on optimizing your process. The Sync Manager handles all the underlying complexities for you.

  • Displays multiple, parallel process flows.

  • Calculate operation times to optimize machine moves.

  • Control non-cutting machine moves.

  • Automatically check for invalid operations or synchronization.

Utility Operations

GibbsCAM MTM supports the entire range of utility operations used by your machine tool, providing full control all the way to posted output. Fully controlling non-cutting moves ensures that you fully utilize your MTM machine tool to maximize your return on investment.

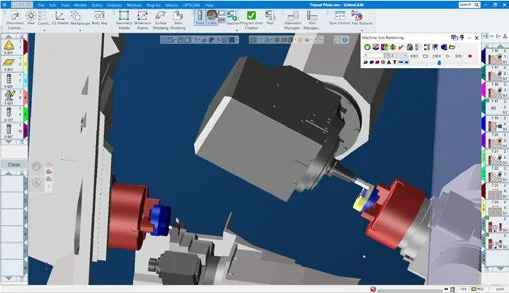

  • Sub-spindle programming.

  • Bar feeders and part catchers.

  • Full off-part turret control and placement.

Integrated Process Rendering

GibbsCAM MTM’s integrated simulation allows you to fully verify your programs including multiple tools cutting at the same time, on-screen, reducing the risk of gouges and collisions.

  • Visual gouge checking.

  • Check efficiency of cutting and non-cutting moves.

  • Simultaneously visualize multiple workflows.
